敬请知悉:
本商品在德国定制生产,由德国工程师手工装配打造,交货周期12个月。
可根据需要定制涂装颜色,在框架范围内,增加功能,如灯光、声音等。

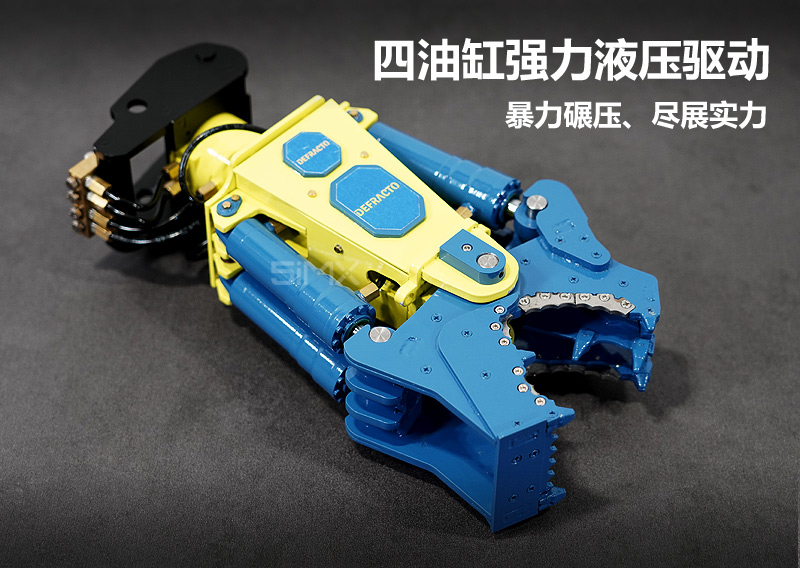

可根据需要选配各种铲子和液压工具。
标价非卖价,直接拍付不予受理。
其他费用还包括:运费、报关费、改装升级费用等。
请与客服沟通阁下的专属定制需求,以便为您提供精准报价。
价位参考:
基础配置(不含扩展油路、不含油路自动快接): 7.6万起步
高级配置(含扩展油路、含油路自动快接): 8.2万起步
组装调试费用约:8600元
喷涂费用约:4700元(利勃海尔黄,标准色)
喷涂其他颜色或样式费用较高,请根据实际情况酌情考虑
* 图片所示为安装有选装配件的高级配置完成品外观,仅供参考。
* 实际产品外观根据你的定制需求而不同,如果是以散件发货,则最终完成效果视个人制作能力而定。
* 因汇率波动实际价格可能会有少许变化。
挖机模型不含:遥控器、电池、液压油(需自备或另购,欢迎联系客服详细了解)
遥控器搭配需求:
官方标配(入门版):至少需要9个比例通道
带有扩展液压通道的手动快接版:至少需要11个比例通道
带有扩展液压通道的自动快接版:至少需要12个比例通道
如需使用Premacon专用挖机声组:至少额外需要4个比例通道
推荐使用ScaleART SA-5000或SA-1000工程专用遥控器
如需定制涂装,需额外支付2000欧元涂装费。
Data Liebherr crawler excavator R 956 hydraulic adjustable boom Basic kit
The original
With an optimal blend of productivity and precision that tracked excavator r956 allow work in a variety of construction- or quarry operations. Thanks to their proven hydraulic concept and its various modes of operation, the excavators from Liebherr always adapt to your needs. Thanks to the attachment geometry and the performance of the hydraulic system unfold tracked excavator r956 very high digging forces. The generously dimensioned cylinders guarantee an increase in productivity even in hard material.
The scale 1: 14.5
The crawler excavator is extrem highly detailed and the features of the original are converted to a new level of sensitivity and performance. It uses only the best materials. Model is available as a finished model as well as a kit.
Measures and weight:
Length of undercarriage: 398 mm
Width chain drive (inside): 265 mm
Gauge track running gear; 200 mm
Height chain drive: 85 mm
Maximum grave depth: 540 mm
Height to canopy: 245 mm
Width superstructure: 206 mm
Weight of the excavator: 26-27 kg +
Construction and materials used
Undercarriage HD steel and brass, CNC turned and milled drive components
Prestressed turntable milled with four-point bearing steel, CNC, all steel gears C45
Superstructure plate from 6mm steel (3mm two plates screwed)
Superstructure cladding 3D printing components of the finest detailing
Arm made of sheet steel with die-cast zinc, Scale Parts
Handle made of aluminum, sandwiched and zinc die cast parts Scale
A-frame made of aluminum with GTS bearings points for all pivot points
Throughout 8 mm bolt for all working equipment
provided all bearings with plain bearings
bucket out of steel with casted bucket teeth
Chains: three or two grouser track chains in perfect detailing of metal
Turndrive:
Preloaded backlash-free slewing ring with PREMACON Direct Drive (see pictures)
Swivel drive Direct Drive: Direct connection of drive motor with intent planetary gear to the ring gear teeth without deflection etc. (minimalstes tolerances in rotary drive, higher performance and more sensitive in the controller)
Rotary drive 40% more power as the R 944B and more sensitively.
Superstructure:
massive 6 mm steel plate
Superstructure in Premiumdetailierung (100% scale)
Cab with all the details as the original: cupholders, driver's seat with armrests, Liebherr joystick, coolbox, radio, air vents etc.
Cabin door open
A Bock very equipped of 5mm aluminum with sliding bearings
Drivetrain technic undercarriage (selectable only with basic kit)
Chain driven by two independently controllable Faulhaber Brushless motor with Faulhaber planetary gear via bevel gears and roller chains on the sprocket
Track Drive: PREMIUM Faulhaber industrial engines with precision steel planetary gearbox installed in the aisles;
Multiple ball bearing shafts and drive elements and all steel gears
Chain tensioner made of steel and aluminum self-tightening
Hydraulic unit (selectable only with basic kit)
Industrial hydraulic pump of the company JUNG Fluidics in cooperation with Kampshoff / PREMACON Silent Drive. (Quietest pump drive in competition)
Hydraulic valves made of hardened steel the company PREMACON / JUNG Fluidics. It is operated by Hitec servos brand
Multiple sealed, completely removable hydraulic cylinder with hard-chromed piston rods
Piston rods now 8mm in diameter from Scale reasons and for more efficient oil volume control on the piston side
Bucket cylinder with about 40% more power as on the old R944B
Large capacity tank approx 350ml; special internal geometry to ensure the oil supply even at lean angles
no foaming, no temperature problems by Premacon passive Cooling System
Oil filter in the tank as standard.
Working pressure 28-30bar +
Electronics: (selectable only with basic kit)
Specially adapted for the pump motor controller parameters
Servonaut MFX controller for chain drive and pivot drive
Industrial rotary feedthrough for endless rotation of the superstructure
Special POWER LEDs as headlights
Power BEC
Hitec servos brands for hydraulic valve control
Operating voltage: 12 V NiMH or 3S Lipo cells
Special equipment or accessories: (selectable only with basic kit)
- hydraulic quick coupler
-Additional hydraulics (2 additional hydraulic connections on the stem with the flow and return
incl. 2 additional Hydraulic valves, piping and Oil Stop hydraulic coupling)
- Chain drive referrers Heavy Duty
- Scale Package: Photo Etched set for all ventilation spaces
- special paint
Special equipment and accessories:
- Stone guard for cab completely (roof and windscreen)
- individually rockfall protection either roof or windscreen
- mechanical Quick coupler
- scale lights package: additional light on the boom and the cabin
- sound module (original LIEBHERR Sound)
Recommended Transmitter:
Computer remote control with at least 9 proportional channels.
In connection with the 11 additional hydraulic proportional channels necessary.
In conjunction with hydraulic quick coupler and auxiliary hydraulics 12 proportional channels are necessary
To control the sound module No. 18000018 or 18000019 4 proportional channels are required in addition.
Shipping costs for Germany without islands (delivery by freight carrier) 118,00 Euro.
2000 euros deposit when ordering a special color
The pictures show the finished model with optional extras. The basic kit is unpainted and not delivered fully assembled.
